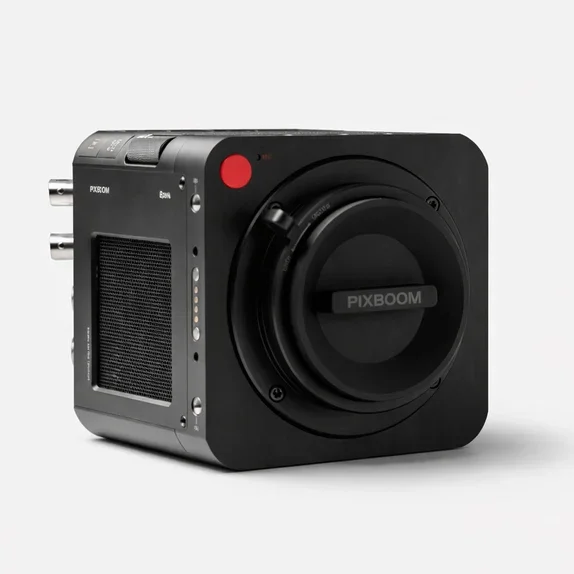

PIXBOOM Spark

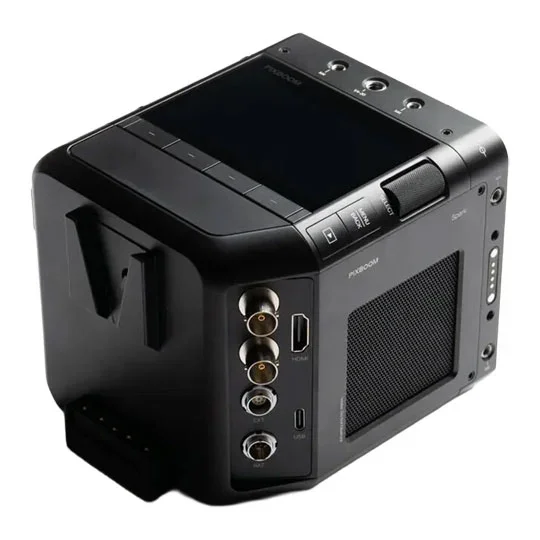

S35 with Global Shutter Sensor, 400 / 1600 Dual ISO, 85% Peak Quantum Efficiency, 13 Stops Dynamic Range, and support for lens electronic communication. The camera also features unlimited recording time, removable Pixboom Pro Card storage, 20Gbps media export speed, a 3.5-inch, 6.22M-dot touchscreen, V-Lock battery interface, and 12G SDI and HDMI 2.0 monitor outputs.

The camera offers high-speed and high-resolution performance with features like 1800FPS at 2K resolutions and 1000FPS at 4K resolutions. It has a high sensitivity S35 BSI sensor with global shutter, Pixboom Raw Solution for visually lossless raw recording, and an all-in-one body design with 4K output, touchscreen, V-mount, and pro I/O. The camera is designed for creators looking for professional shots with minimal lighting, distortion-free motion, and seamless recording capabilities.

Sensor Specs

Sensor readout: Global Shutter

Sensor type: 14.2MP super 35mm global shutter CMOS

Sensor size: 4608 x 3072 | 25.34 mm x 16.90 mm (diagonal: 30.46mm) Dynamic range: 13 stops

Mount Type : Interchangeable locking mount (E/EF/PL)

Recording

Max data rates up to 10 GB/s using Pixboom Pro Card

Pixboom RAW solution max frame rates:

• 670 fps at 4.6K Open Gate 3:2 (4608 × 3072)

• 887 fps at 4K 16:9 (4096 × 2304)

• 1171 fps at 4k 2.37:1 (4096 × 1728)

• 1724 fps at 2k 16:9 (2048 × 1152)

• 2182 fps at 2k 2.37:1 (2048 × 864)

General

Body material: Aluminium alloy

Dimensions (without lens mount): 108 × 110 × 130mm / 4.25 × 4.33 × 5.12 in (H × W × L, largest fixed dims.)

Weight (without lens mount and memory card): 1.1kg

Media type: Removable Pixboom Pro Card

Media export method: Export via Type-C without requiring any card reader

Media type export speed: 20 Gbps (USB3.2 Gen2X2)

Screen: 3.5-inch 6.22M-dot 16:9 touchscreen

Battery type: Integrated V-lock battery interface optimized for V-lock batteries

DC Power input: 15-24 V via 5-pin DC-IN

Environmental

Operating temperature: 0°C to 40°C (32°F to 104°F)

Storage temperature: -25°C to 60°C (-4°F to 140°F)

Features:

Remote control*

• Wi-Fi for camera control and preview via dual band (2.4 GHz/5 GHz) antenna

• Wired control via USB-C or 9-pin EXT Port allowing remote camera control

Monitor outputs

• Integrated top touchscreen LCD with preview and camera control

• 12G-SDI for 4k output*

• HDMI 2.0 for 4k output

Additional I/O**

• Genlock through 9-Pin EXT Port

• Linear Timecode (LTC) through 9-Pin EXT Port

• GPIO through 9-Pin EXT Port

Software

Pixboom control: Access full camera controls and live preview from mobile devices.

Pixboom Cine:

Pixboom RAW Processing Software (Windows & macOS)
